Galvinized Steel Strip
The surface of the galvanized strip is covered with a layer of zinc, which can effectively isolate the erosion of substances such as air, moisture, and carbon dioxide, thus playing a role in corrosion prevention.
Contact Us

PRODUCT PARAMETERS

Production:Galvanized steel strip
Grade:DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z
Types:Commercial / Drawing / Deep Drawing / Structural quality
Width:

20-600mm, or customized

Thickness:0.12-4mm, or customized
Type of coating:galvanized
Zinc coating:30-400gsm
Surface treatment:Oil,Passivation,chromium-free passivating,passivation+oil,chromium-free passivation+oil
Surface structure:zero spangle / minimized spangle / regular spangle/ big spangle
Package:Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is the tray)
Steel grades        Chemical composition%Residual Element
>
Tensile strength
(MPa)
Yield strength
(MPa)
C%
<
Si%
<
Mn%
<
P%
<
S%
<
Alt
<
SGCC, DX51D+Z0.070.030.500.0250.0250.020Cu<0.10
Ni<0.08
Cr<0.10
As<0.05
Sn<0.05
270-500140-280
DX52D+Z0.060.030.450.0250.0250.020270-420140-300
DX53D+Z0.030.030.400.0200.0200.020270-380140-260
S220GD+Z0.170.301.000.0350.300.020300-440>220
S250GD+Z0.170.301.000.0350.300.020330-470>250
S350GD+Z0.200.551.600.0350.300.020420-560>350


PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

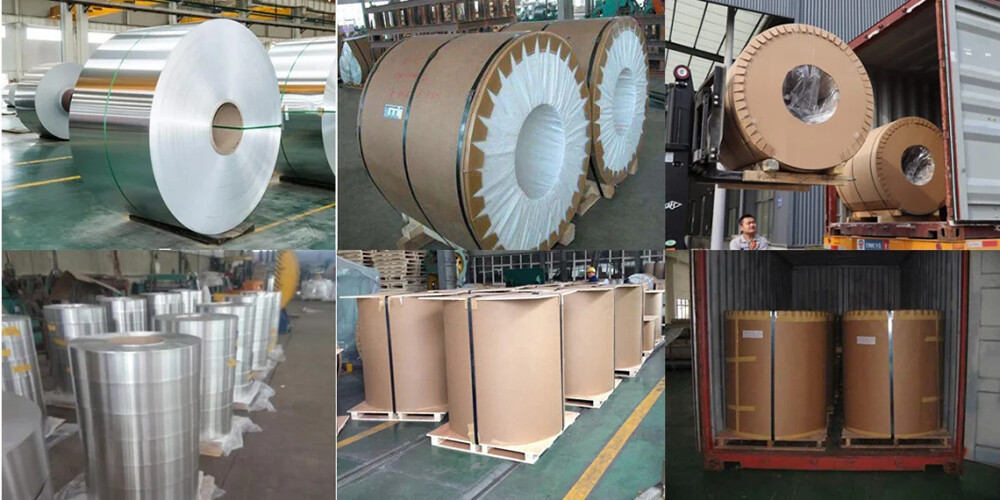

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
