Galvanized Steel Strand
Galvanized steel strand is a metal product made of multiple galvanized steel wires twisted together. It conforms to the national standard YB/T 5004-2012 and is mainly used in fields such as overhead guy wires for post and telephone poles, ground wires for power transmission lines, catenary wires, and structural cables for buildings.
Contact Us

PRODUCT PARAMETERS


Nominal DiameterNumber of WiresWire Nominal Diameter (mm)Approximate Weight (kg/m)Minimum Breaking Load of Wire Rope (kN)




General GradeFair GradeHigh Strength GradeUltra-High Strength Grade
1/8 (3.18)70.041 (1.04)32(48)540 (2.402)910(4.048)1330(5.916)1830(8.140)
5/32 (3.97)70.052(1.32)51 (761)870 (3.870)1470 (6.539)2140(6.519)2940(13.078)
3/16 (4.76)70.062 (1.57)73(109)1150 (5.115)1900 (8.452)2850(12.677)3990(17.748)
3/16 (4.76)70.065(1.65)80(119)----
7/32 (5.56)0.30.104 (2.64)88(131)1400 (6.228)2340 (10.409)3500 (15.569)4900(21.796)
7/32 (5.56)70.072 (1.83)98(146)1540 (6.850)2560 (11.387)3850(17.126)5400 (24.020)
1/4 (6.35)30.120 (3.05)117(174)1860 (8.274)3040 (13.5231)4730(21.040)6740(29.981 )
1/4 (6.35)30.120 (3.05)117(174)----
1/4 (6.35)70.080 (2.03)121(180)1900 (8.452)3150 (14.012)4750 (21.129)6650 (29.581 )
9/32 (7.14)30.130 (3.30)137(204)2080 (9.252)3380 (15.035)5260 (23.398)7500 (33.362)
9/32 (7.14)70.093(2.36)164(244)2570 (11.432)4250 (18.905)6400 (28.469)8950 (39.812)
5/16 (7.94)30.145 (3.68)171 (255)2490 ( 11.076)4090 (18.193)6350 (28.246)9100 (40.479)
5/16 (7.94)70.104 (2.64)205 [305)3200 (14.234)5350 (23.798)8000(35.586)11200 (49.820)
5/16 (7.94)70.109 (2.77)225 (335)----
3/8 (9.52)30.165 (4.19)220 (328 )3330 (14.813)5560 (24.732)8360 (37.187)11800(52.489)
3/8 (9.52)70.120 (3.05)273 (407)4250 (18.905)6950 (30.915)10800 (48.040)15400 (68.503)
7/16 (11.11)70.145 (3.68)399 (595)5700 (25.355)9350 (41.591 )14500 (64.499)20800 (92.523)
1/2 (12.7)70.165(4.19)517 (770)7400(32.917)12100(53.823)18800(83.627)26900(119.657)
1/2(12.7)190.100(2.54)504(751)7620(33.895)12700(56.492)19100(84.961 )26700(118.768)
9/16 (14.29)70.188(4.78)671(1000)9600(42.703)15700(69.837)24500(108.981)35000(155.688)
9/16 (14.29)190.113(2.87)637(949)9640(42.881)16100(71.616)24100(107.202)33700(149.905)
5/8 (15.88)70.207(5.26)813(1211)11600(51.599)19100(84.961)29600(131.667)42400(188.605)
5/8 (15.88)190.125 (3.18)796(1186)11000(48.930)18100(80.513)28100(124.995)40200(178.819)
3/4 (19.05)190.150(3.81)1155(1721)16000(71.172)26200(116.543)40800(181.487)58300(259.331)
7/8 (22.22)190.177(4.50)1581(2356)21900(97.416)35900(159.691)55800(248.211)79700(354.523)
1 (25.4)190.200(5.08)2073(3089)28700(127.664)47000 (209.066)73200(325.610)104500(464.839)

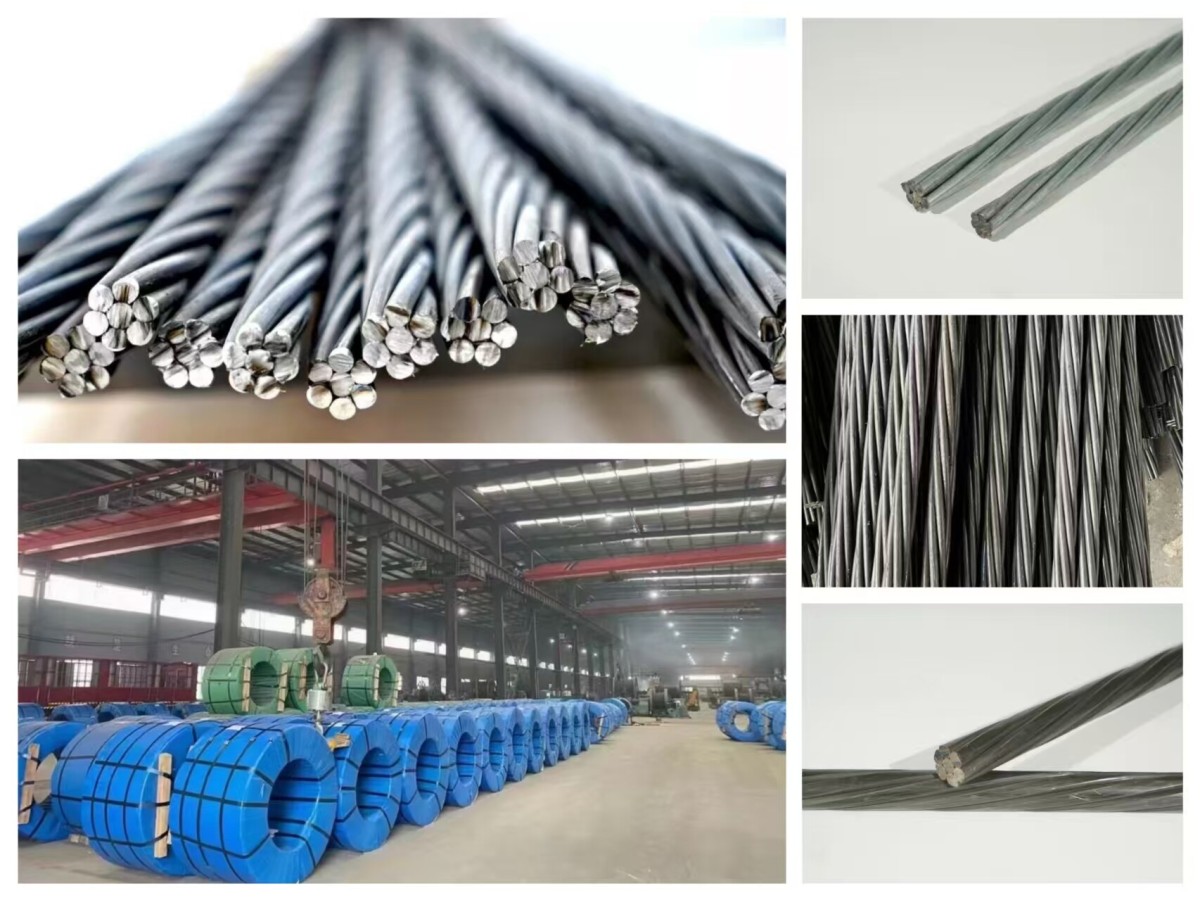

镀锌钢绞线

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

钢绞线应用图

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
