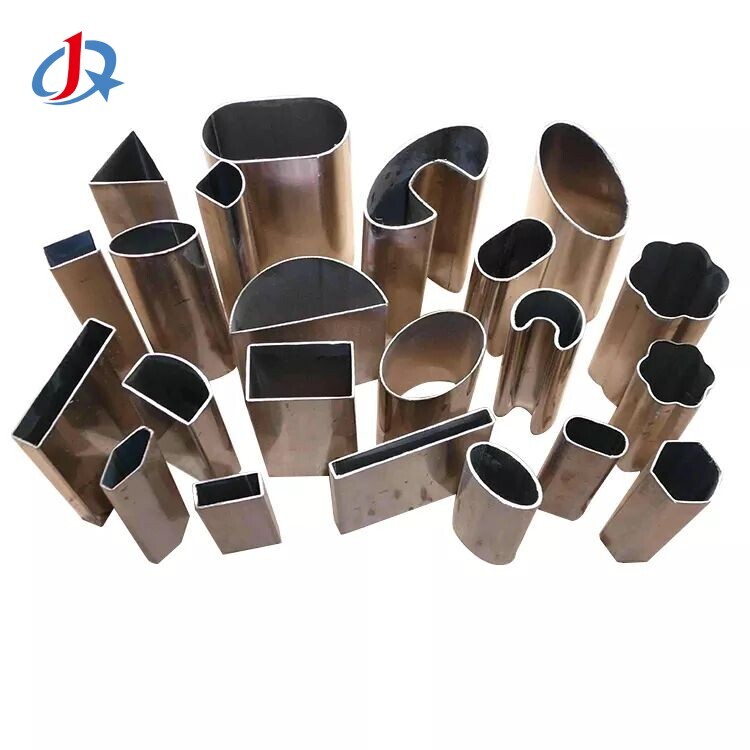

Special Shaped Tube Stainless Steel Pipe Fitting
Special Shaped Stainless Steel Pipe and Tube refers to non-round stainless steel tubing used in various industries. Common applications include product support structures, channels for fiber optics, and liquid dispensing systems. Depending on the structural requirements, shaped tubing can be designed to offer directional strength—similar to I-beams.
Contact Us

PRODUCT PARAMETERS


Special Shaped Pipe and Tube Important Considerations

  • Tolerances on non-critical features should be relaxed to reduce production costs.
  • Tight radii or sharp angles increase manufacturing complexity and may be unfeasible.
  • Final cutting and secondary forming can be challenging; Emily Metal uses specialized tooling for accurate, burr-free results.

Manufacturing Process

  • Cold drawn
  • Annealed (with nitrogen protection)
  • Ultrasonic welded
  • Auto shaping and polishing
  • Packed as per requirements

Ends

  • Plain end or beveled end (or as per request)

Surface Finish Options

  • 180#, 220#, 320#, 400#, 600#, HL, MF, 8K, etc.




Material 304/KG/MMaterial 316L2205 KG/M
Shaped PipeSpecificationsTheoretical WeightTheoretical Weight
Outside
Diameter
Channel1.2 mm1.5 mm2.0 mm1.2 mm1.5 mm2.0 mm
Round Single Groove Pipe25.414×140.9331.1661.5540.9381.1731.564
38.115×151.3321.6652.221.3411.6762.234
42.424×241.6082.012.681.6182.0232.697
48.327×301.9032.3793.1721.9152.3943.192
50.815×151.6942.1172.8231.7052.1312.841
50.820×201.7792.2242.9651.7792.2242.965
50.825×251.8462.3073.0761.8462.3073.076
6020×202.0942.6173.4892.1072.6333.511
6024×242.172.7123.6162.1832.7293.639
60.334×342.352.9383.9172.3652.9573.942
60.520×202.1792.7243.6322.1932.7413.655
101.626.7x23x26.73.4644.335.7733.4864.3575.809
Elliptical Single Groove Tube60×3024×241.8082.263.0131.8192.2743.032
80×4024×242.2462.8073.7432.262.8253.767
80×4033X262.2552.8193.7592.272.8373.783
40X11033X262.7693.4614.6152.7873.4834.644
Square Tube Single Groove Tube25×2114×141.0471.3081.7451.0531.3171.756
40×3024×241.6842.1052.8071.6952.1192.825
60×4024×242.2552.8193.7592.272.8373.783
40×4024×241.8562.323.0931.8672.3343.112
Flat Elliptical Tube15×30
0.7520.941.2530.7570.9461.261
20×40
0.991.2371.6490.9961.2451.66
40×80
1.9982.4983.3312.0112.5143.352
42×75
1.7892.2362.9821.82.253
60×120
2.7413.4264.5682.7583.4474.596
50×100
2.4653.0814.1082.483.14.134
50×120
2.8453.5574.7422.8633.5794.772
180°Double Groove Tube50.815×151.9512.4383.2511.9632.4543.272

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
