Stainless Steel Valves
​Cast iron gate valves are widely used as regulating and shut-off devices in pipelines such as tap water, sewage, construction,petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy systems.
Contact Us

PRODUCT PARAMETERS


Cast iron gate valves are widely used as regulating and shut-off devices in pipelines such as tap water, sewage, construction,petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy systems.

Features
* Bolted Bonnet
* Replaceable O-ring
* Rubber encapsulated wedge, Brass Wedge Nut.
* Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick
* Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC


Gate Design
*wedge gate valve Standard gate valves have wedge plates that enter a slot structure to stop the flow. Because of the design, our wedge gates have less motion resistance and require less torque to control the valve.*parallel slide gate valve Parallel slide valves use a middle disc that slides in the middle of seat rings to create a tight seal.The sliding mechanism can remove particles from the disc to lessen the risk of erosion and leaks.*knife valve Bladed edge is the main feature of knife gate valve that cuts through a granular solid or thick liquid. The uniquefeature of our gate prevents any small particles from blocking the seat to create a solid seal for certain piping operations.

Hf6b5b1a700af4945ad5826d5de3903eeP

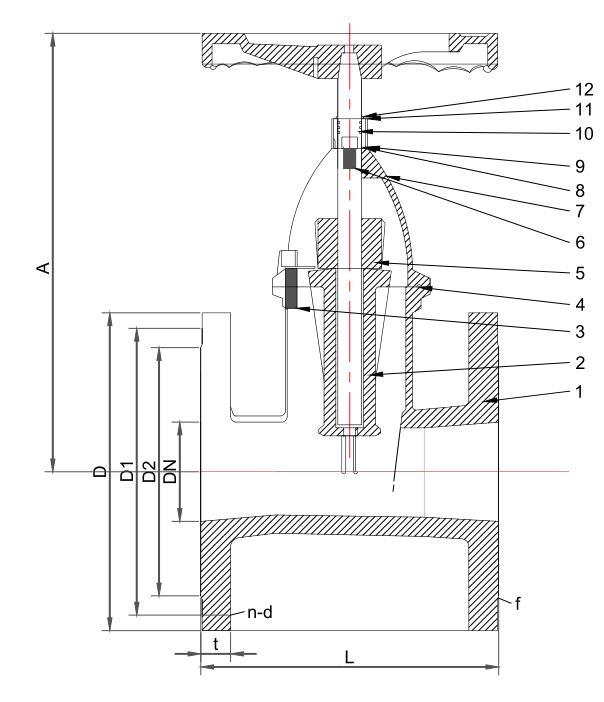

Main components and their materials
NUMNameMeterialNUMNameMeterial
1BodyDuctile iron7BonnetDuctile iron
2GateDuctile iron +EPDM8Splint CollarIron+Electroplate
3Bonnet BoltsGalvanized carbon steel9GasketNylon
4Bonnet GasketNBR10"O"RingNBR
5Stem NutsBrass11"O"RingNBR
6Stem2Cr1312GlandBrass

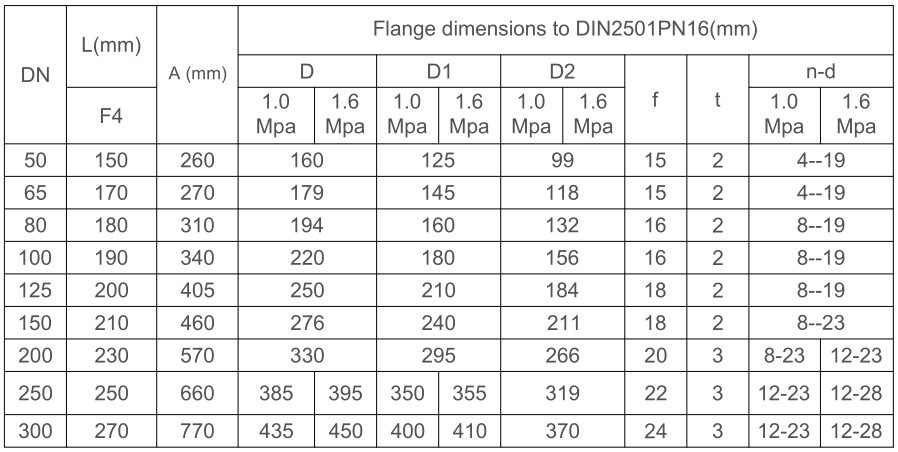

Dimensions & Weight

H7680b7da90e945d0afd7066fad413fc1R

Design standard:DIN3352
Flange:DIN2501 PN10.PN16
Face to face dimensions:DIN3202(Equal To ISO5752)
Test standard:DIN3230
Work temperature:NBR80℃ EPDM120℃

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
